GWR 61xx class ...

The class 61XX locomotives, like many others, were further developed from earlier designs. The Collett class 61XX owes its beginnings to the number 99 locomotive designed by Churchward in 1903. The class 61XX was almost identical to the earlier class 51XX and the later class 81XX. However, they had a higher boiler pressure, which led to a greater pulling force. The 61XX locomotives spent their working lives on Paddington's suburban railways. They had to pull heavy trains at quite high speeds and, thanks to the increased boiler pressure, were able to cope with traffic demands.
At GWR times they wore the green paint as standard. BR provided the series with both a black and a green paint.

The 5 "inch model ...

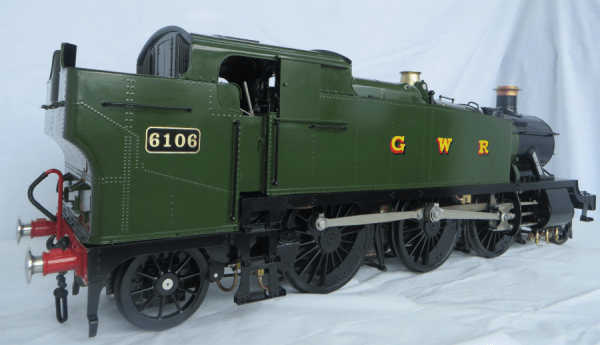

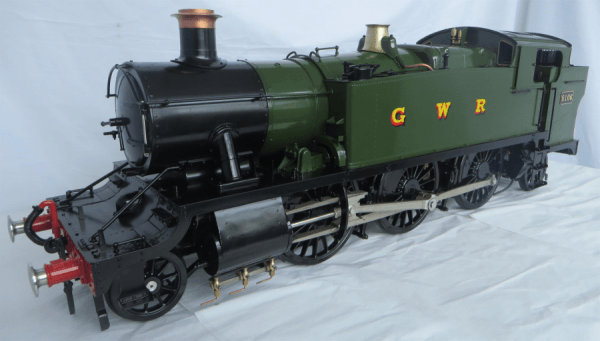

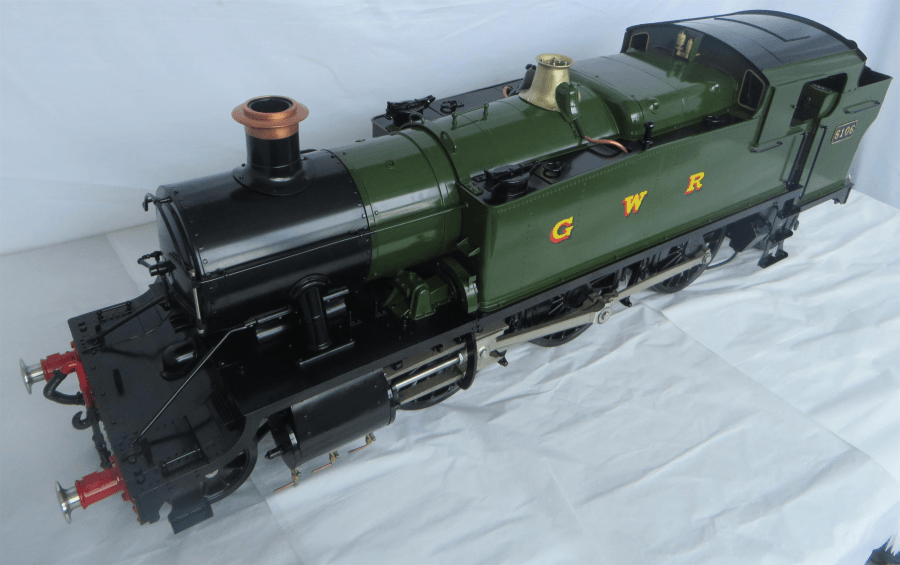

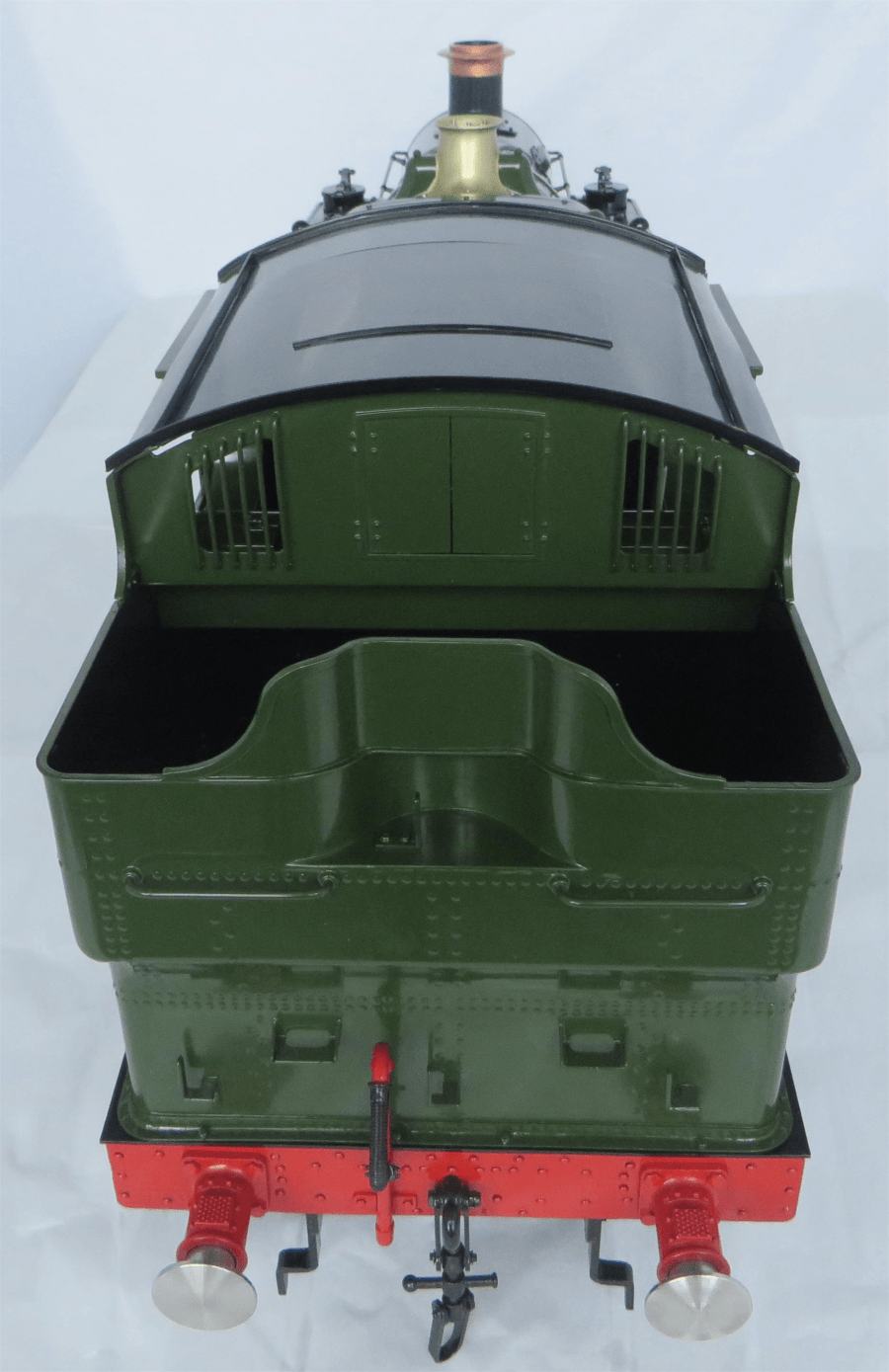

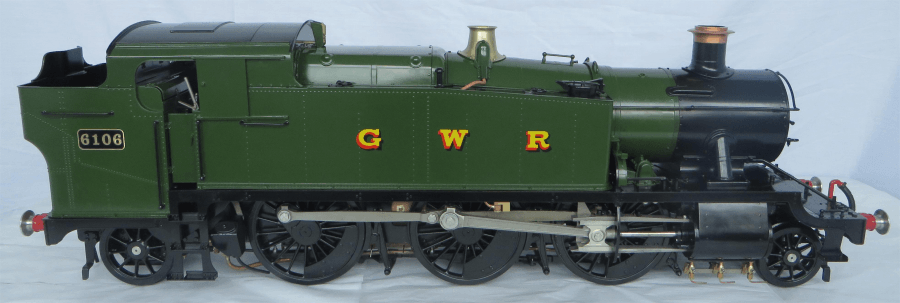

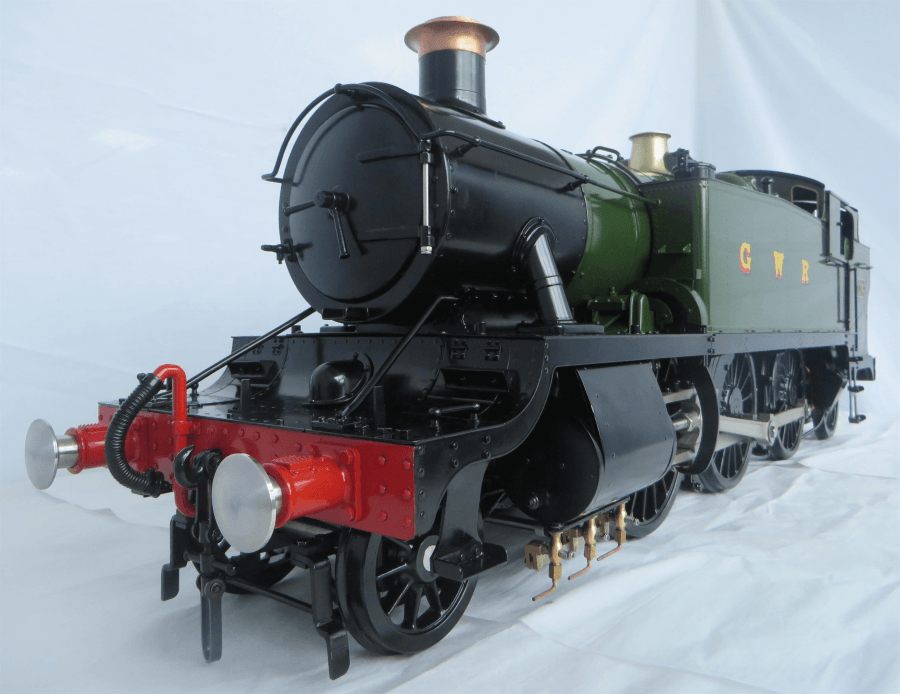

We are introducing the GWR 61XX of the 5 inch gauge in our growing range of live steam locomotives. For € 9,995.00 shipping, this 5 "gauge model is unbeatable value for money. The coal-fired model is very powerful and can pull a number of adults. The locomotive is delivered ready for use and fully painted, the choice is yours between GWR green, BR green or BR black. Each model is equipped with a silver-soldered copper tank that has been hydraulically tested for double the operating pressure. All tanks comply with the latest regulations and are marked and certified accordingly. The 61xx is an ideal model for exhibiting, transporting and driving. As proof of our confidence in the high quality of this model, we offer a 12-month full warranty. Our customer service is considered to be second to none.


Technical specifications

GWR 61xx class

Approximate dimensions

Length 112 cm
Width 25 cm
Height 35 cm

Weight approx. 80 kg

Boiler feed by crosshead pump, injector,
Hand pump

Etched brass body with rivet details

GW Pattern Double Safety Valves

Choice of 3 color variants

Painted and ready to use

Coal fired

5 "gauge

2 external cylinders

Piston valve

Stephenson valve control

Mechanical blowdown valve

Mechanical oiler

Silver-soldered copper kettle

Multi-element superheater


Delivery will take place in the 3rd quarter of 2022. When ordering, a deposit of € 2,500 is due. Another € 2,500 in December 2021. The remaining amount when the locomotive is delivered.
