A MODEL IN MUSEUM QUALITY UNEXPECTED PRICE-PERFORMANCE RATIO.

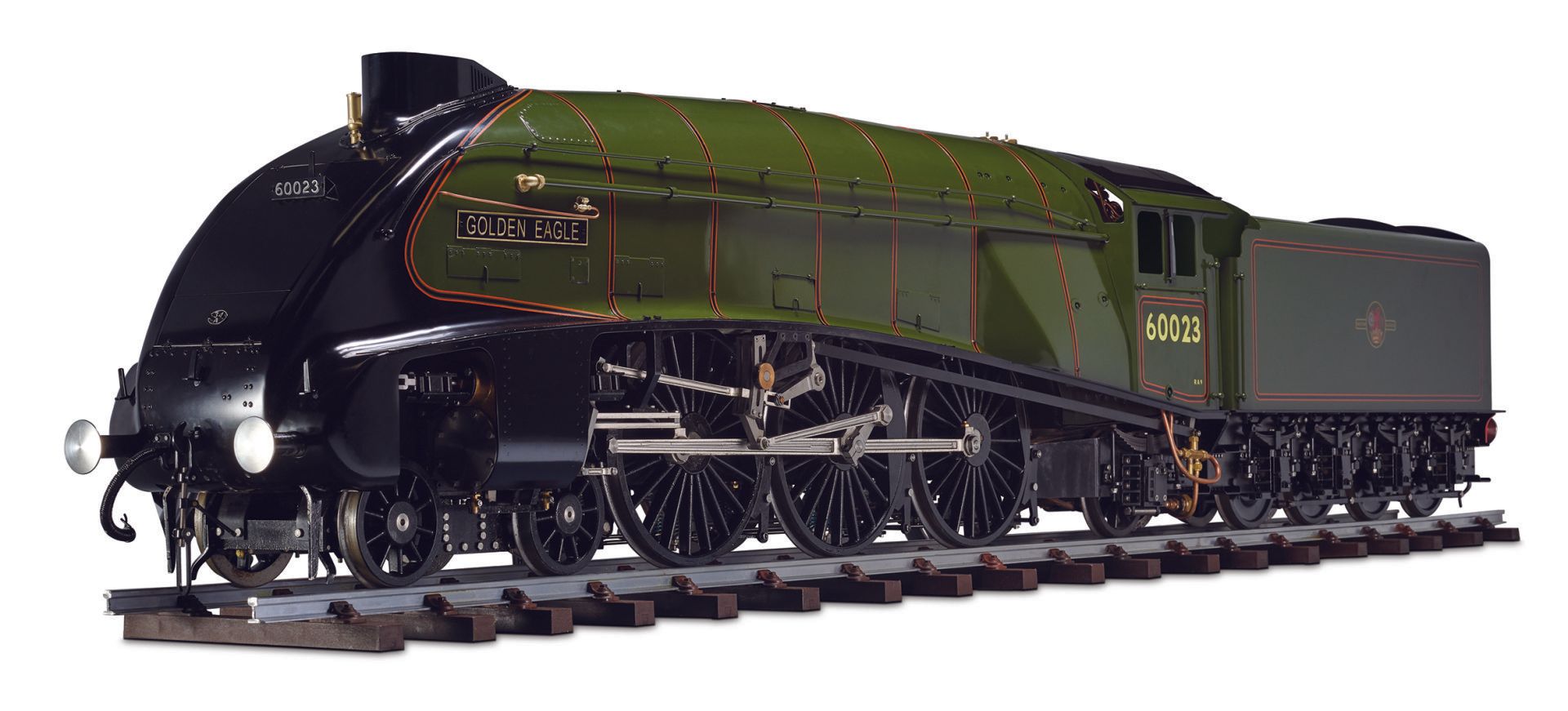

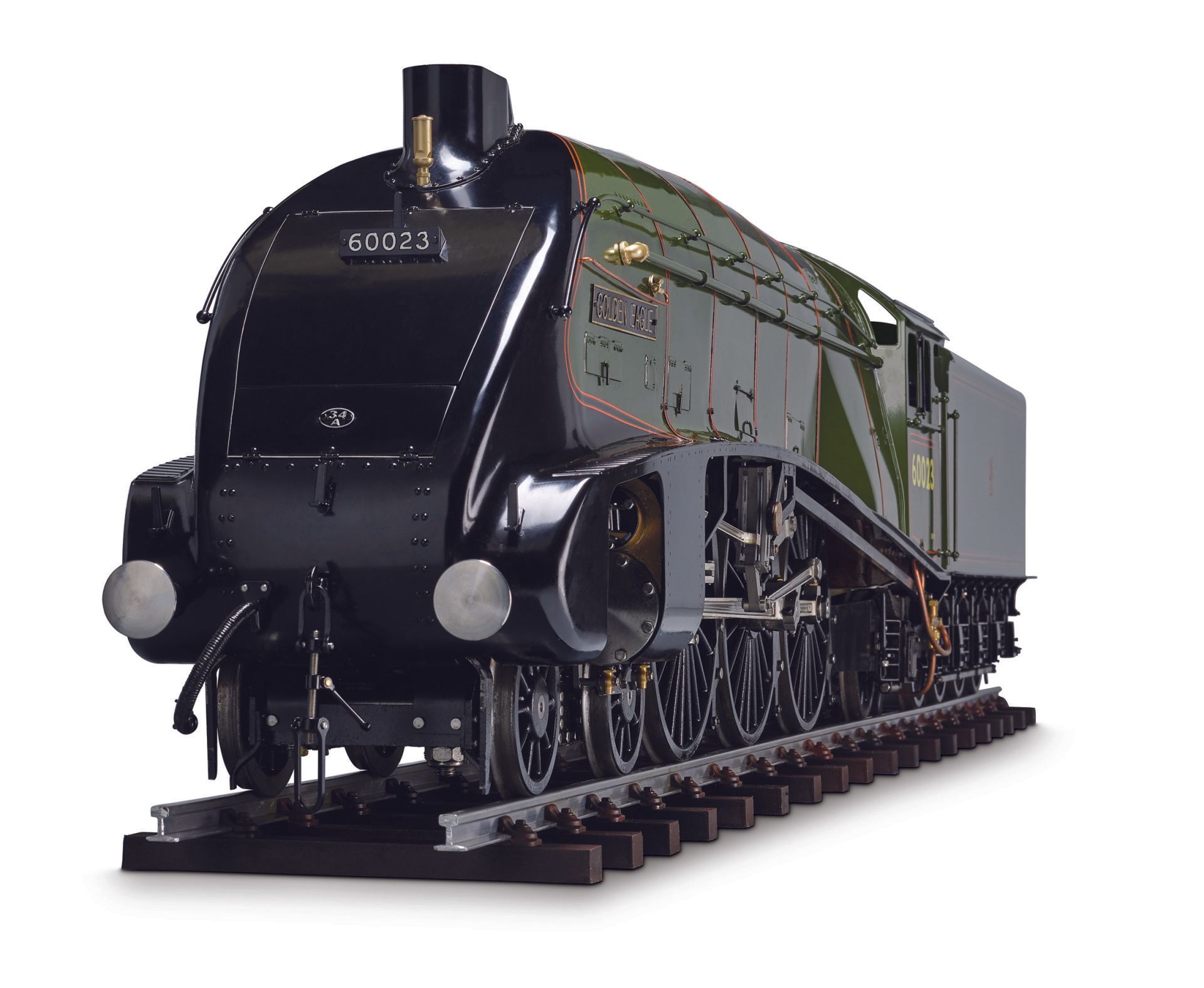

The A4 was a real eye-catcher. The locomotive will impress as a 5 inch model with its stately appearance. It is visually successful and very powerful.

Due to the balanced three-cylinder engine, this machine is very powerful and still quiet when driving.

For this price, you get an excellent model with a professionally manufactured copper kettle, many fine wax castings that are completely painted, lined and ready to use.

You can configure the locomotive until the end of January 2020. The paint finishes are available in blue, green and silver. The streamlined cladding completely or cut out (matching the color scheme) and the name.

Original construction

Our models are always our own constructions. We aim to produce high quality models at an affordable price. We consider ourselves lucky to have a professional and award-winning model builder as a consultant in Mike Pavie. Our new development process aims at the production of high quality and durable models, produced in individual lots of 20 pieces.

Development process

Realistic replica of the original combined with good driving characteristics are the main goals of the design of the model. Good design and manufacture of all individual parts complete the model. The construction process begins with the procurement of reliable original documents. Workshop drawings and original photos form the basis.

Coal-fired, real steam

2 outer cylinders, 40 mm piston diameter and 1 inner cylinder 40 mm

Walschaerts (Heusinger) control and Gresley control

Cast iron cylinder with bronze rifles

Steam-operated wheel brake and cylinder drain valves

Mechanical oiler

Copper kettle (silver soldered)

Radiation superheater (consisting of several elements)

Boiler feed through injector, axle pump and hand pump

Bars and grate (dimensions: 155mm x132mm) made of stainless steel

Spring-loaded axles with needle bearings

Reversal

Etched sheet metal parts with rivets

Two safety valves

Choice of paintwork. Green, blue or silver

Fully painted and ready to use

Min. Radius 33ft (10 m)
