Bay. G 3/4 h Class 54
The prototype
For delivery in the 2nd quarter of 2024 we are planning the Bavarian G 3/4h or also class 54.
These locomotives, built in a quantity of 225 units, were mainly used in light to medium-heavy goods train service. Towards the end of their service life, the locomotives were to be seen in the south of Germany in front of shunting and transfer services.
Most of these beautifully designed machines survived the Second World War and were used throughout Germany, but also in Austria, by the ÖBB.
The model

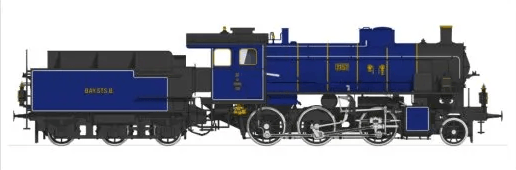

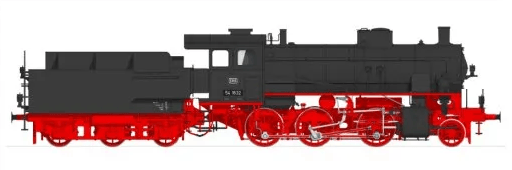

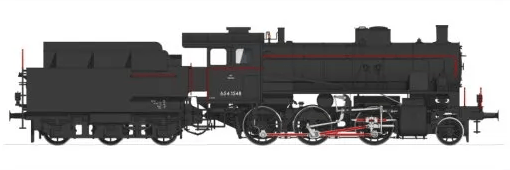

We offer this coal-fired livesteam locomotive in 5 versions.
All of them are handmade and the number of pieces will again be limited. This ensures a long-term preservation of value.
Technical data
-Coal-fired
-Safety valve
-Two external cylinders
-Sprung axles with needle bearings
-Functional balancing levers
-Copper boiler (silver brazed)
-Flat slide valve
-Heusinger control
-mechanical oiler
-reversing control
-hand brake locomotive and tender
-etched sheet metal parts with replica rivets
-boiler feed by injector
-Axle driving pump and hand pump
-Functioning cylinder drain valves
-Stainless steel rods
-Superheater (made of several elements)
-Bronze cylinder with pistons and slides
made of steel
-Completely painted and ready for use
-scale 5″inch 1:11
-Length over buffers 1590 mm
-Height 390 mm
-Width 276
-Weight loco approx. 60kg tender 25kg
-boiler pressure 8 bar
-min radius: 5 m
-wheel diameter 122mm
-Cylinder bore 36mm
-Piston stroke 50mm
-Auxiliary blower
-whistle
-Sludge valve
-manometer
The tender gets removable footrests and a removable seat. This allows the locomotive to be driven without an escort car.
Our models are delivered with a 24 month warranty.
Starting with the construction, continuing through the delivery and beyond, we do everything to maintain the trust of our customers.
With this model, you get an exceptional locomotive at an attractive price.
After more than 12 years of experience in the commercial live steam sector and the delivery of more than 100 locomotives in all gauges, in Germany alone, we have acquired the corresponding experience. Also with the new BR 54 our principle is to bring the fun of playing in line with the price and the lasting quality.
As these models are one-offs, a deposit of € 3,000 is due when ordering. A further payment of € 3.000,-- is due when the model ordered by you is custom-made according to your wishes. The remaining amount will then be invoiced upon delivery.
To ensure the best possible quality and reliability, we accompany the development from the CAD design to the personal acceptance of each individual locomotive.
Price: € 14.595,-- incl. 19% VAT + shipping.
Price guarantee until 31.05.2023
